- 【Support Multiple of Protocols】QC PD2.0/3.0/3.1 FCP AFC voltage trigger output. Ajustable voltage 5V/9V/12V/15V/20V/28V trigger output.
- 【Wide Compatibility】Max supports 28V/5A, 140W. The actual output current/power is determined by your fast charging charger and load.
- 【Safe Design】Solid and long service life. Prevent misoperation from avoiding voltage damage to load equipment. Ultra-low power consumption.

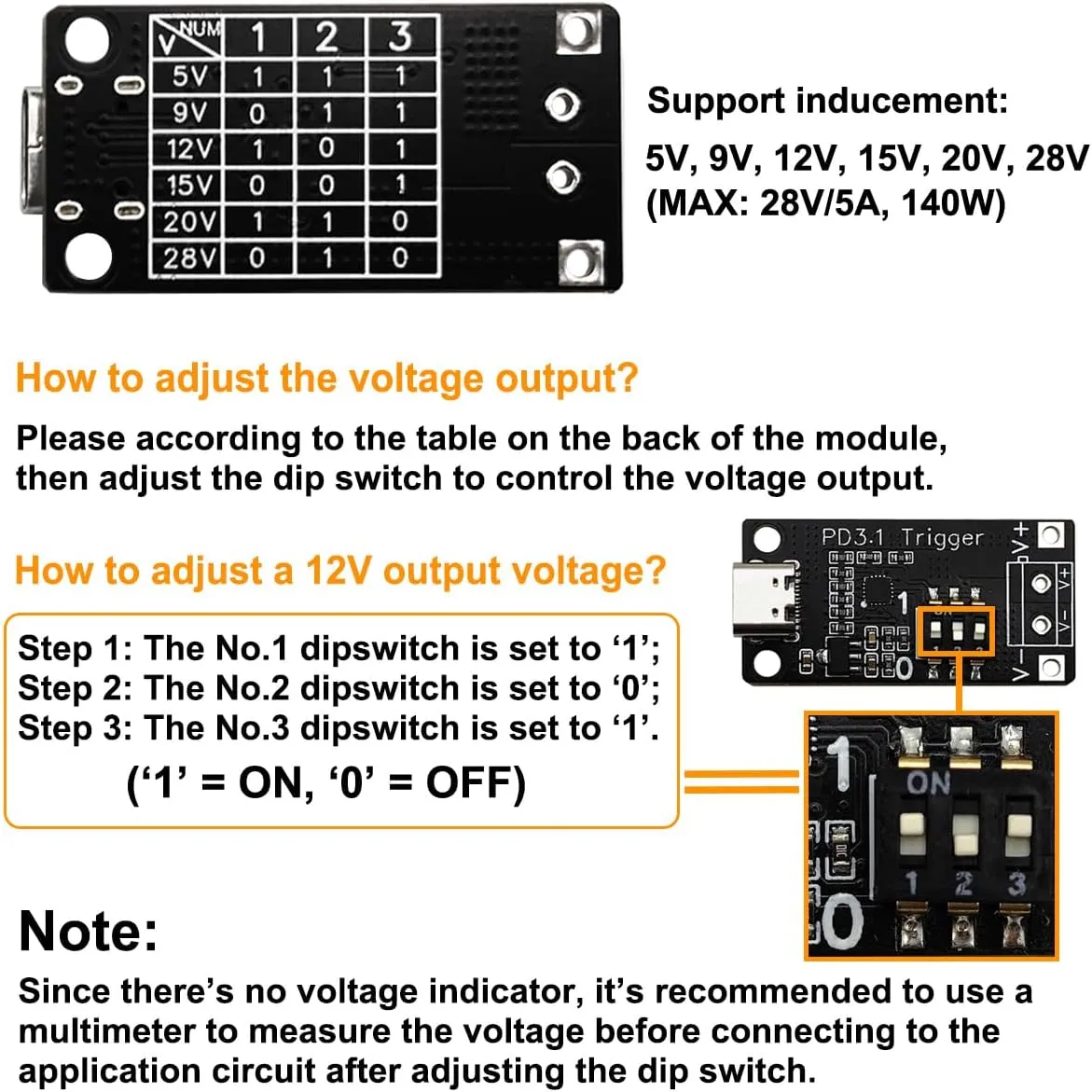

- 【Easy to Operate】The trigger board is marked the table on the back that easy to show how to adjust the 3-position dip switch to different voltages.
- 【Widely Use】It can be used for fast charger to trigger different voltages as DC power supply, and also be used to supply power to router, optical modem, battery charging, etc.

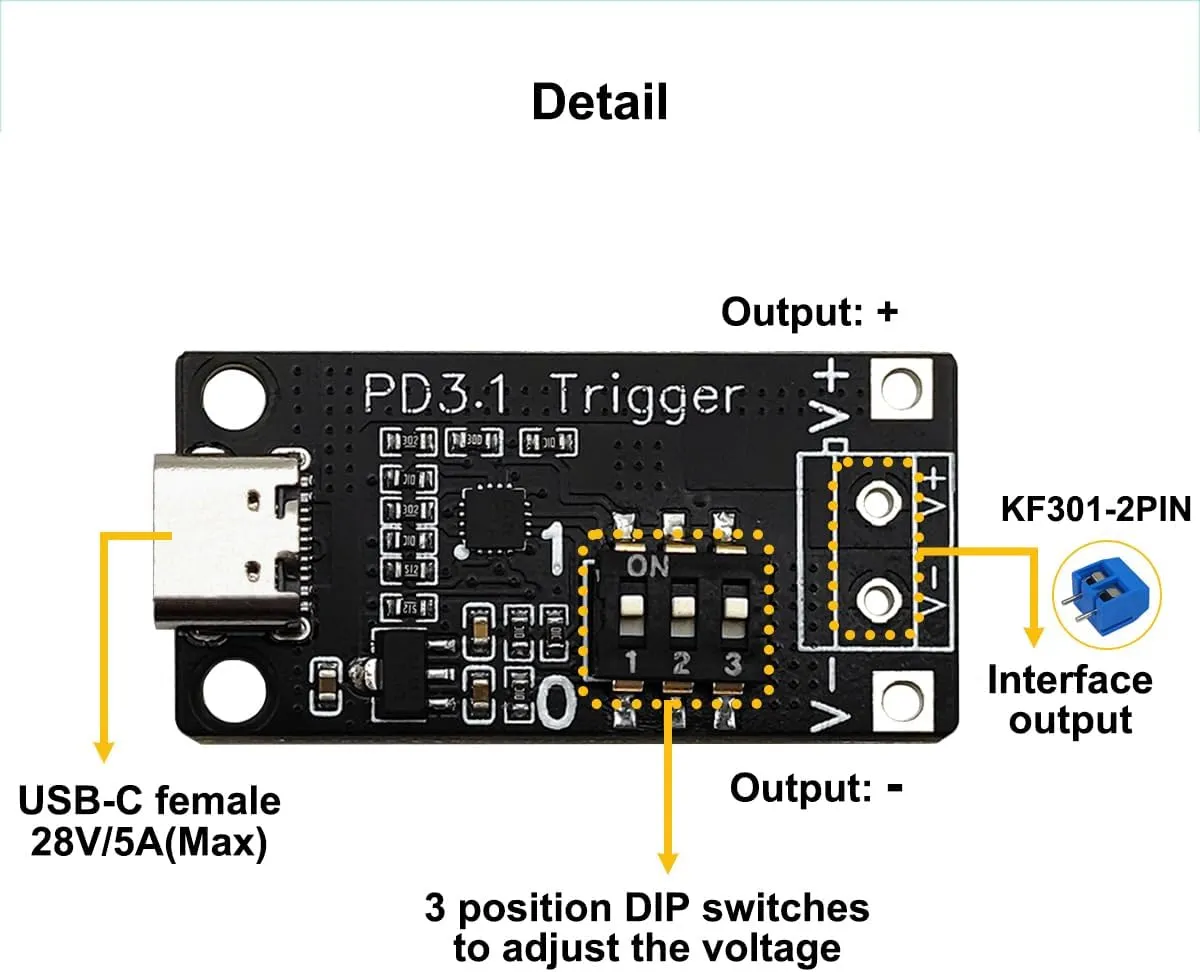

Features:
Output: 5V/9V/12V/15V/20V/28V
Output current: 5A(MAX)
Power: 100W(20V/5A), 140W(28V/5A) Size: 40.7X20X6.1mm
Attentions:
1. The trigger board can't boost buck, it can be induce power module output only.
2. Please know that there are not all USB-C power supplies can support all voltages.
The max support is 28V/5A(140W), the actual output current/power is determined by your fast charging charger and load.
3. If the power supply is not support the requested voltage, it will be provided the next lowest voltage.
(If you want to trigger 12V, but your charger doesn't support 12V, it will automatically fall back to 9V)
4. If you want to use more than 65W, please use the TYPE-C cable with E-mark. (Max current support 5A)
5. Since there's no voltage indicator, it's recommended to use a multimeter to measure the voltage before connecting to the application circuit after adjusting the dip switch.

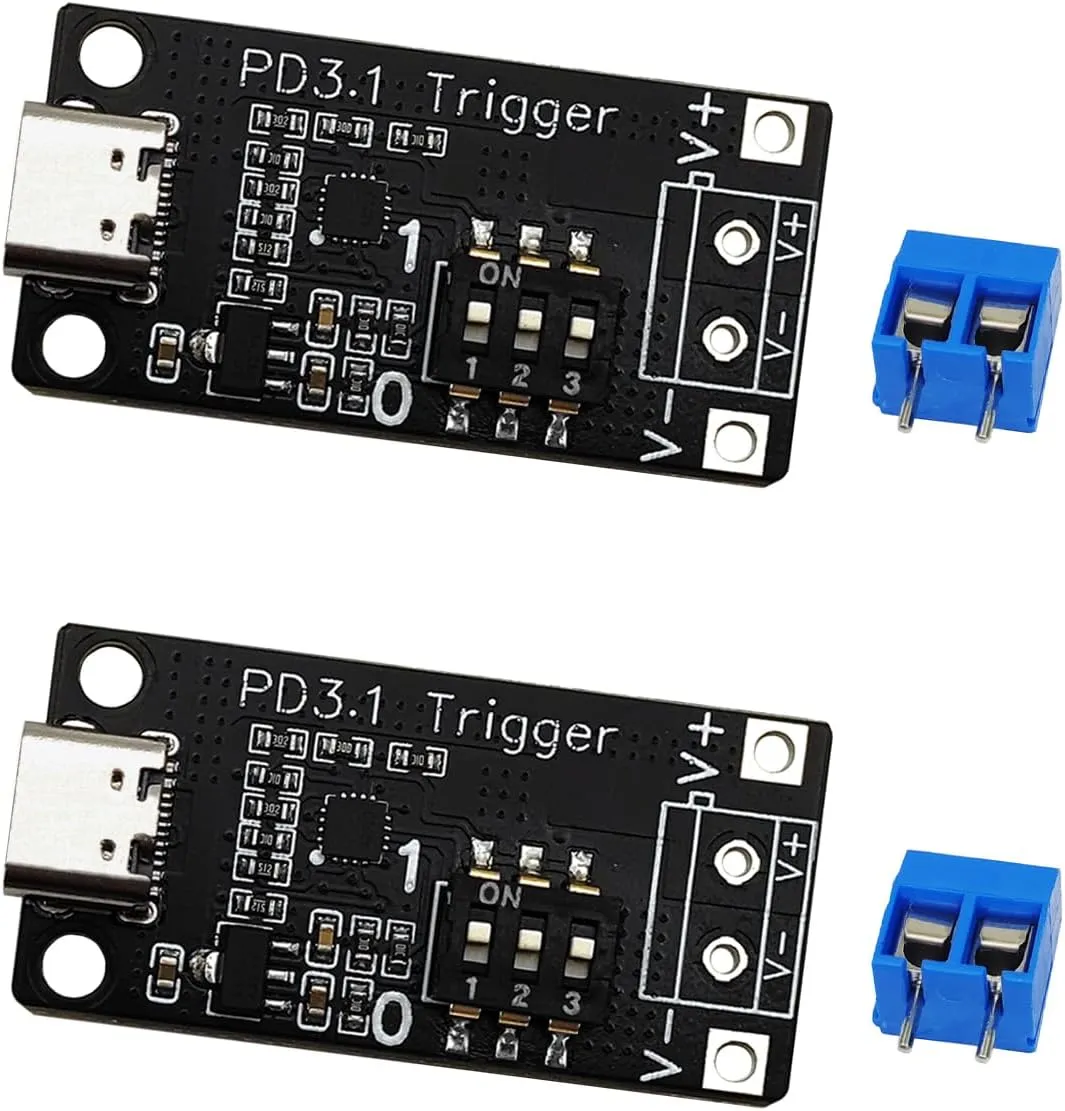

2* PD3.1 Trigger Board
2* KF301-2pin
