- 【Excellent Quality Workmanship】:The 8G Micro Servo made with excellent plastic shell material (lightweight and fast heat dissipation) and high-precision plastic gear (prevent tooth sweeping and better muting effect) has a longer service life.
- 【High Performance Digital Standard】:The 8G Mini Servo with electronic burn protection can achieve Low Noise, Good Stability, Small Vibration, Smooth Operation, Excellent Linearity, Precision Control, Fast Response.
- 【Coreless Motor】:8G Digital Servo equipped with coreless motor and clutch protection function, which can provide better mute effect and quick response ability for the servo, greatly improving the accuracy of your RC models, and also greatly reducing the probability of servo damage.
- 【Widely Use 】:The 8G RC Servo is suitable for micro remote control models such as RC Aircraft,RC Helicopters,RC Drones,Fixed-Wing,RC Car SCX24,Boat,Toys,etc.
- 【Note】:In the frequency range of 500~2500us, the maximum controllable angle of the servo can be accurately achieved at 180 degrees, and the servo can achieve a control angle of 90 degrees under the control of a transmitter.

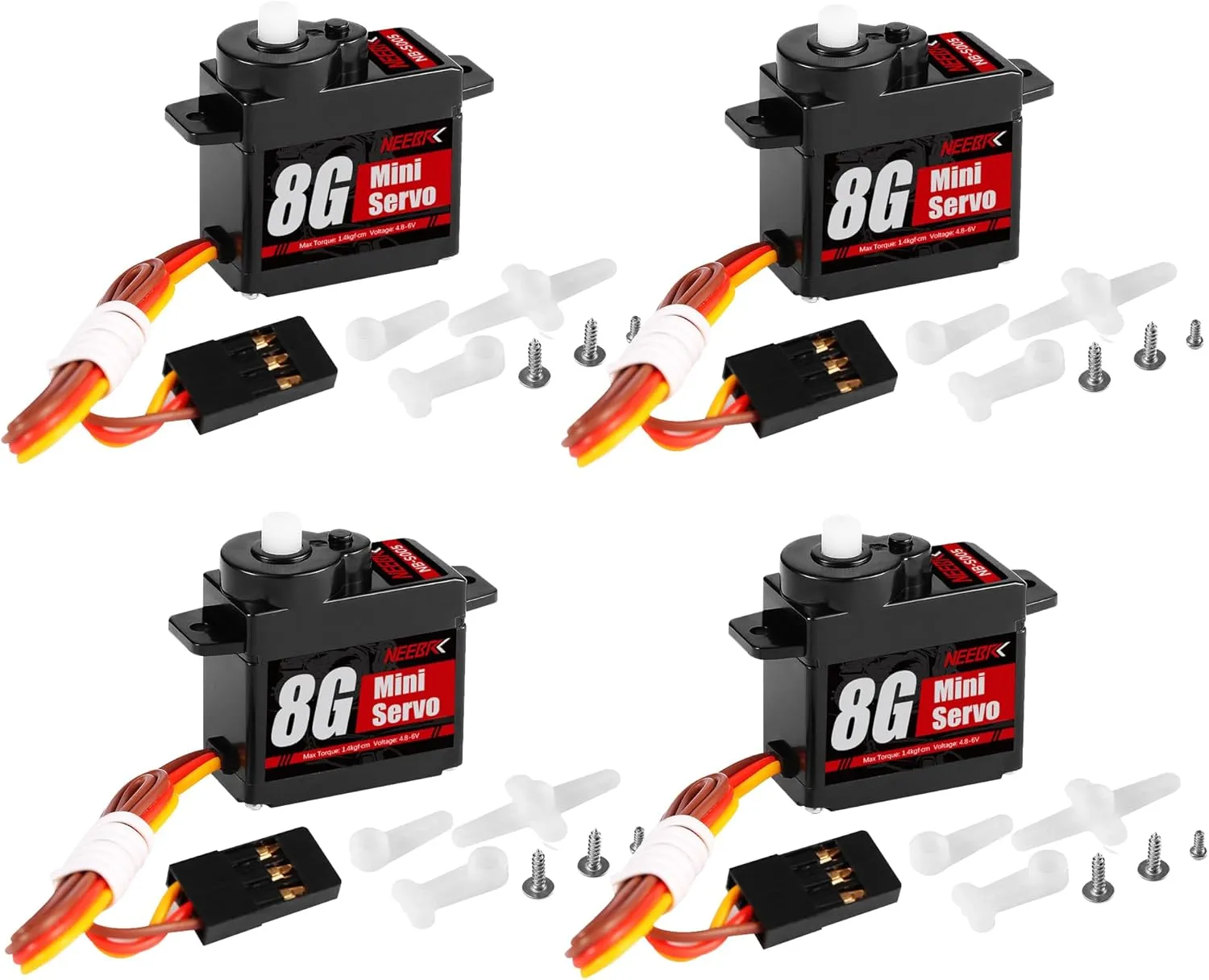

NEEBRC S005 Mini Micro Servo
Specifications:
Quantity: 4pcs/set
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥1.10kgf·cm ； 6.0V≥1.40kgf·cm
No Load Speed : 4.8V≤0.14sec/60°; 6.0V≤0.12sec/60°
Stall Current：4.8V≦680mA；6.0V≦780mA
Consumption Current* (No Load)：4.8V ≦130mA ；6.0V≦150mA
Max. Operating Travel Angle：180°±10°(500~2500μs）
Dead Band Width: ≤ 3us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS
Gear Set Material : Plastic gear
Weight: 8 g
Size: 26.5 × 11.5 × 22.8mm
Length of Connector cable: JR 200±5mm (exposed without plug)
