- 16 digital channels. Dual-mode support. In stream mode, data will be captured and transferred into PC memory in real time. With this mode, you can get long sample duration; In buffer mode, data will be captured and stored into on-board memory temporarily. With this mode, you can get a high sample rate.
- USB 3.0 type-c interface. Up to 16G sample depth in stream mode. Support following stream modes: 1GHz @ 3 channels / 500MHz @ 6 channels / 250MHz @ 12 channels / 125MHz @ 16 channels.
- 2Gbits on-board DDR3 memory. Support following buffer modes: 1GHz @ 8 channels / 500MHz @ 16 channels.

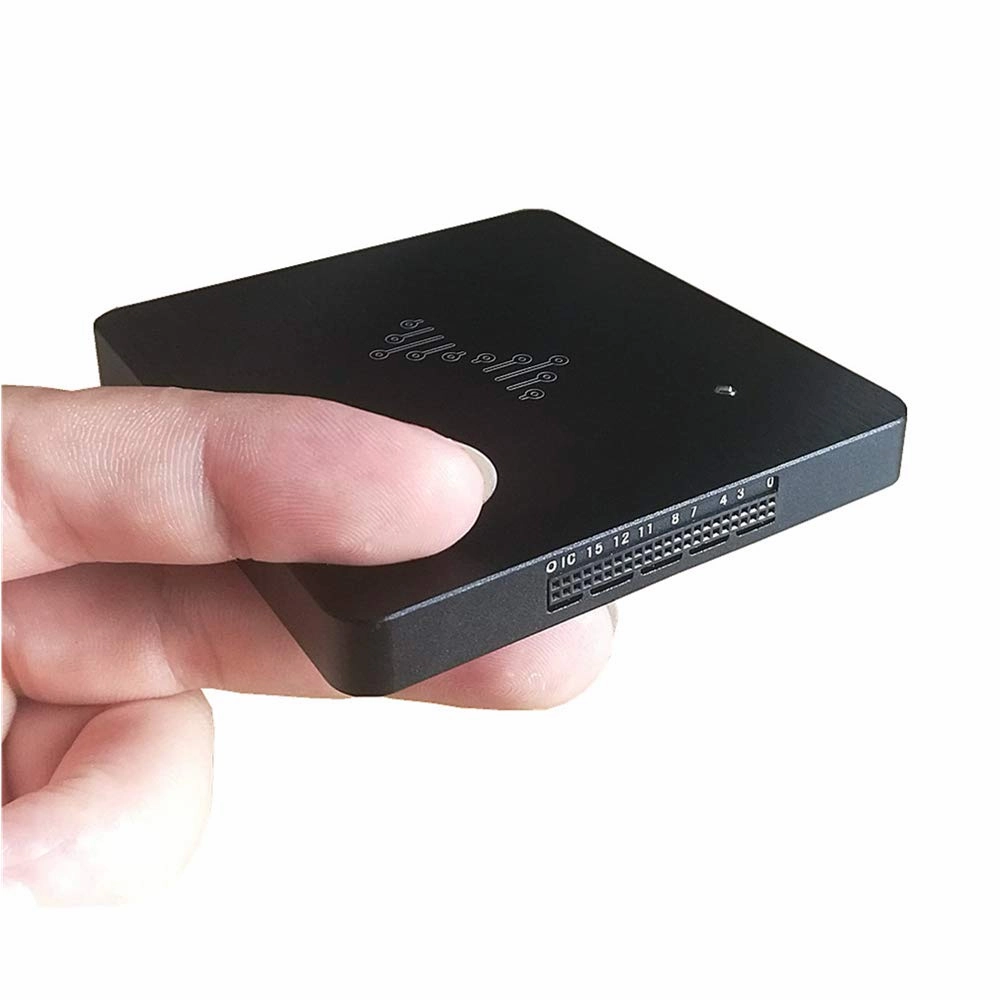

- Support adjustable threshold (0.1 Step). Additionally with shielded fly wires and unibody aluminum case, you can get a better and cleaner waveform.
- Worked with DSView software, which is compatible with Windows, macOS and Linux. DSView supports nearly a hundred protocol decoders. Additionally it's also an open source software, you can find it on github.
- Product Dimensions : 3.11 x 2.91 x 0.35 inches; 1 Pounds
- Date First Available : June 30, 2020
- Manufacturer : Shenzhen MengYuan Technology Co., Ltd.
